SHIMANO CUES U6000 1x11-Speed MTB Groupset – 11-50T LINKGLIDE

SHIMANO CUES U6000 1x11-Speed MTB Groupset – 11-50T LINKGLIDE

Upgrade your bicycle drivetrain with the SHIMANO CUES U6000 1x11-Speed Groupset, a versatile drivetrain package designed for compatible mountain, trekking, and recreational bicycles.

Built around Shimano's LINKGLIDE drivetrain technology, the CUES system emphasizes durability, smooth shifting, and dependable performance for everyday cycling and challenging terrain.

This 11-speed groupset combines Shimano CUES shifting components with a single-chainring crankset, wide-range cassette, and compatible LINKGLIDE chain to provide a streamlined drivetrain solution.

The 1x11-speed configuration simplifies gear selection by eliminating the need for a front derailleur, while the wide-range rear cassette provides gearing options for climbing, commuting, and recreational trail riding.

Key Features

• 1x11-Speed Drivetrain: Single front chainring paired with 11 rear gears for simplified shifting and operation.

• Shimano CUES U6000 Series: Designed for compatible mountain, trekking, and everyday cycling applications.

• LINKGLIDE Technology: Shimano drivetrain technology engineered for durability and consistent shifting performance.

• 11-Speed Shift Lever: Mechanical shifting for convenient gear selection.

• Rear Derailleur: Shimano CUES U6000-series rear derailleur for compatible LINKGLIDE drivetrains.

• Single-Chainring Crankset: Simplified front drivetrain configuration without a front derailleur.

• Wide-Range Cassette: Shimano CS-LG400-11 cassette with a supplier-listed 50T largest sprocket.

• LINKGLIDE Chain: Shimano CN-LG500 chain designed for compatible LINKGLIDE drivetrain systems.

• Versatile Riding Applications: Suitable for compatible mountain, hybrid, trekking, and recreational bicycles.

Technical Specifications

Compatibility & Installation Notice

This Shimano CUES drivetrain package requires compatible LINKGLIDE components and appropriate bicycle frame, freehub, bottom bracket, and drivetrain specifications.

Verify the exact crankset model, crank length, chainring size, bottom bracket requirements, cassette range, derailleur compatibility, and included hardware before purchasing.

Bottom bracket and installation accessories are not confirmed as included unless specifically stated by the supplier.

Professional installation is strongly recommended to ensure proper drivetrain alignment, shifting performance, and safe operation.

Note:If you choose the option of Without BB,it does not include the BB-MT501.Please check carefully before purchasing.

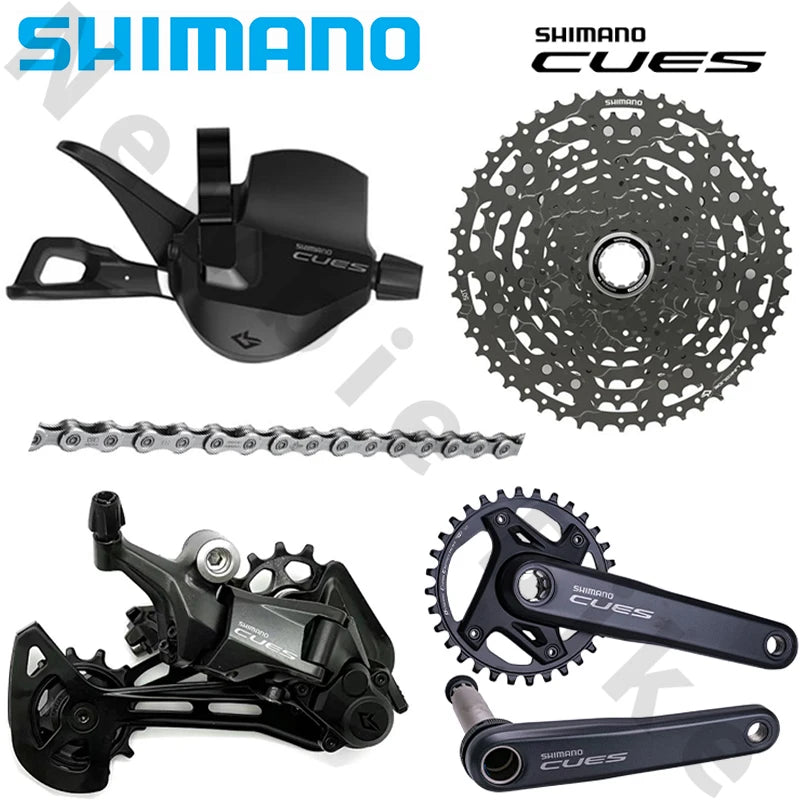

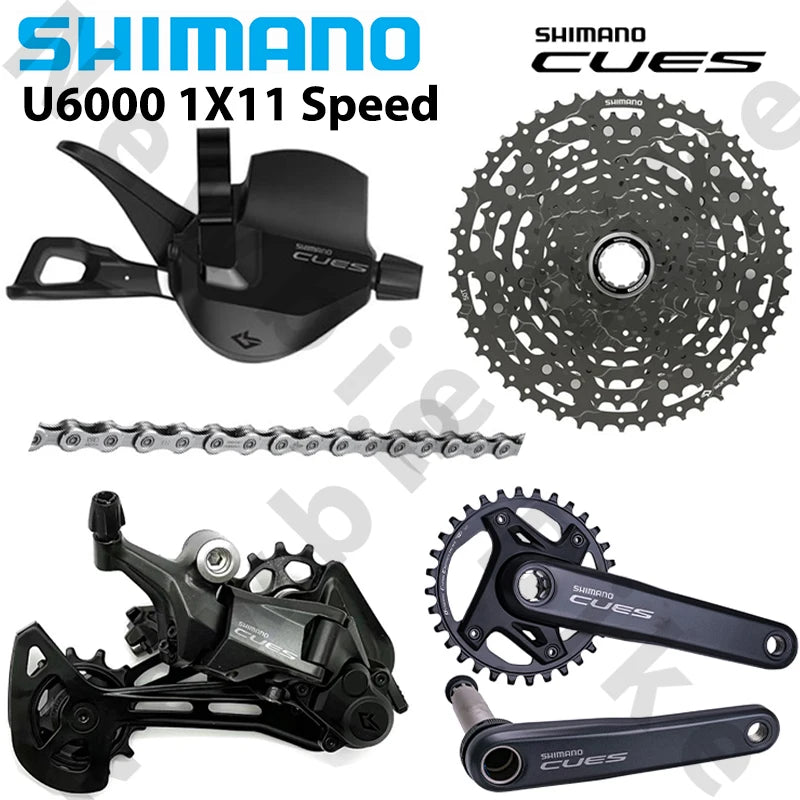

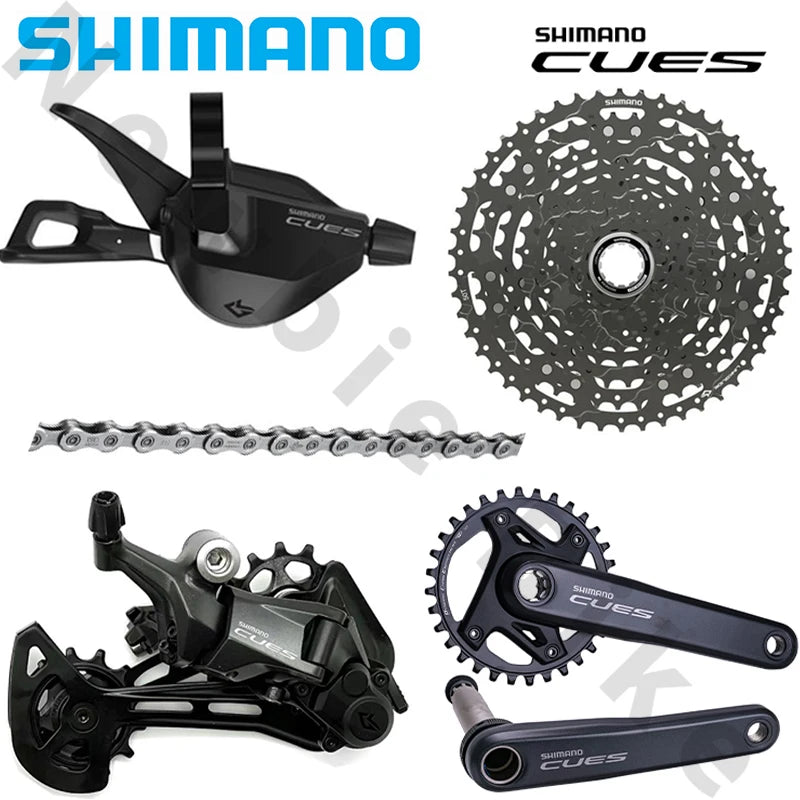

Groupset Includes:

1.SL-U6000-11R

2.RD-U6000

3.CS-LG400-11 50T

4.CN-LG500

5.FC-U6000-1

6.BB-MT501/without BB(No the bottom bracket)

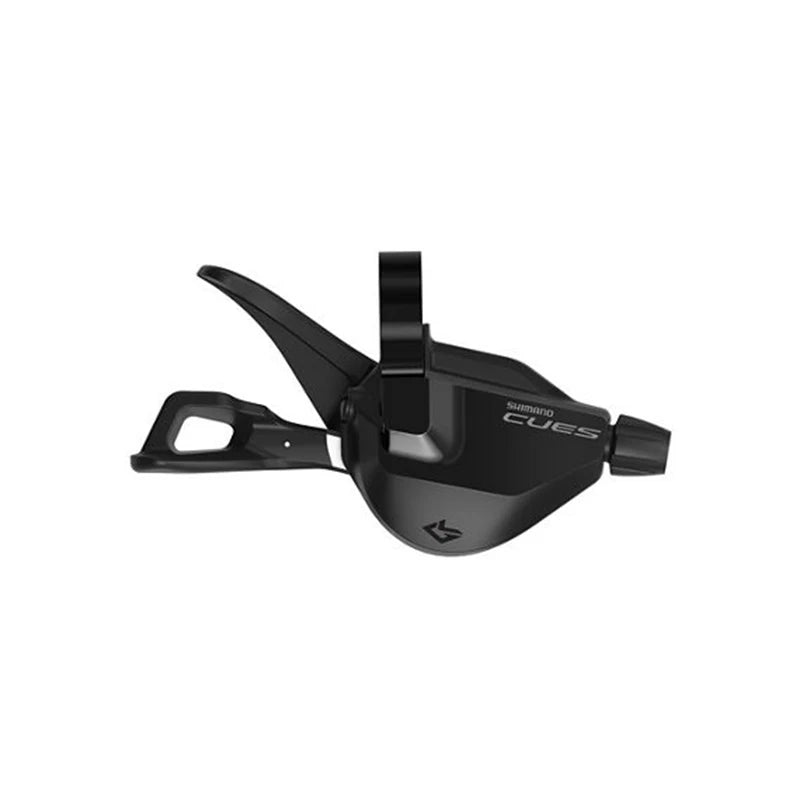

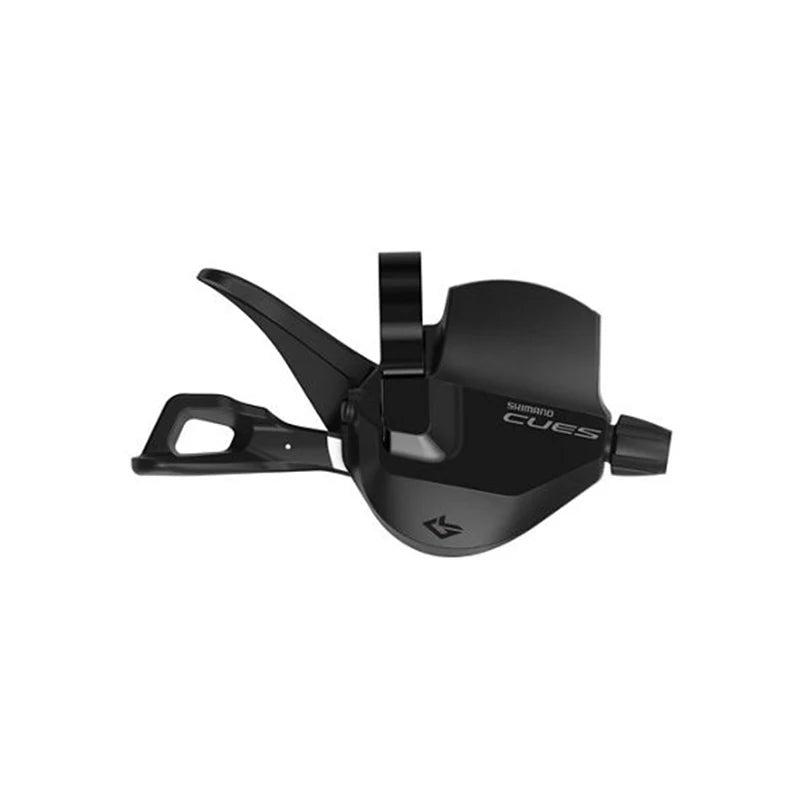

SHIMANO CUES RAPIDFIRE PLUS Shifter Clamp Band 11-speed

SL-U6000-11R NEW

Refined lever shape and light operation for easy shifting

This lever's new shape and light operation provide riders with a comfortable, easy-to-use interface.

FEATURES

Quick lever access and light operation

RAPIDFIRE PLUS

》Easily-visible gear position indicator option improves shifting control

OPTICAL GEAR DISPLAY

2-WAY RELEASE

Only compatible with LINKGLIDE shifting system

PRODUCT SPECIFICATIONS

MODEL NO SL-U6000-11R

SERIES CUES U6000 Series 11-speed

Color Series color

Shifter type RAPIDFIRE PLUS

Rear speeds 11

Compatible rear derailleur type LINKGLIDE system 11s

Mount type|Clamp band ✔

Shift lever cable adjust ✔

Max. multiple shifts (Main lever/rear) 2

Release function|2-WAY RELEASE ✔

OPTICAL GEAR DISPLAY|with ✔

OPTICAL GEAR DISPLAY|without ✔

Shift lever cable|Inner cable|OPTISLICK ✔

Shift lever cable|Inner cable|Steel ✔

Recommended shifting lever outer casing OT-SP41

TECHNOLOGIES

optislick

RapidfirePlus

2way_release

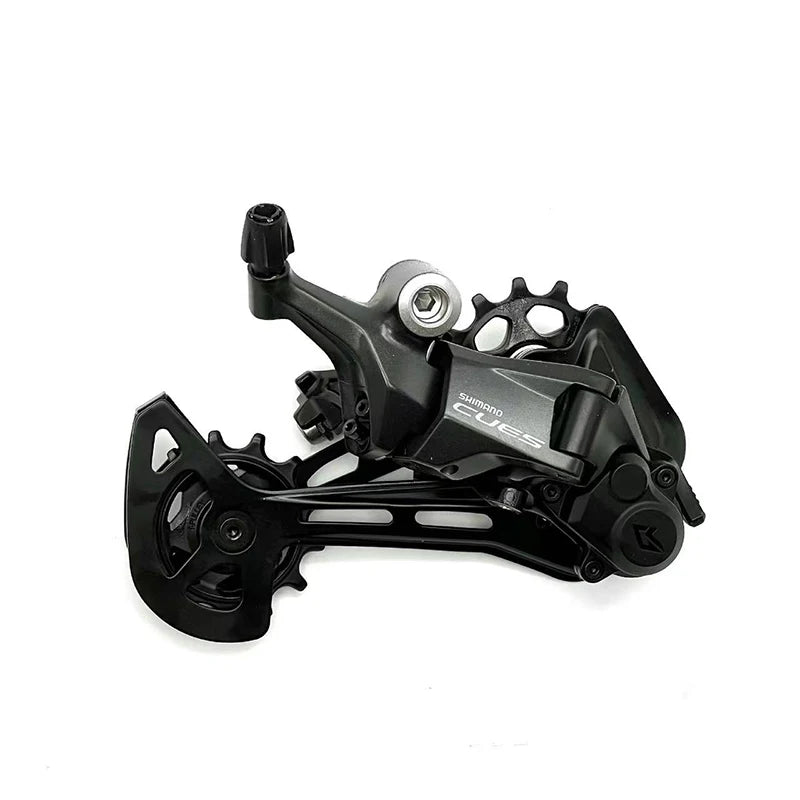

SHIMANO CUES SHADOW RD+ Rear Derailleur 10/11-speed

RD-U6000 NEW

Tackle trails and choose rougher routes with confidence

Tackle trails with this versatile 1x11-speed rear derailleur's seamless shifting and pedaling. Its low-profile design and chain stabilization give riders the confidence to choose rougher routes.

FEATURES

Stable drivetrain performance on trails, gravel, and city streets

》Chain stabilizer reduces chain drop, slap and noise

》Low-profile design is optimized for rough terrain

》Total capacity: 39T

》Max low sprocket: 50T (1x11-speed), 48T (1x10-speed)

Designed and tested to provide enduring e-biking performance

E-BIKE RATED

Note:Only compatible with LINKGLIDE shifting system

PRODUCT SPECIFICATIONS

MODEL NO RD-U6000

SERIES CUES U6000 Series 10-speed

Color Series color

Remarks E-bike rated

Rear speeds 11/10

Compatible chain LINKGLIDE, HG 11-speed

Top-normal spring type|SHIMANO SHADOW RD+ ✔

Mount|Direct attachment (Conventional) ✔

Cable adjuster ✔

Max. front difference 0T

Total capacity 39T

Low sprocket|Max. 50T

Low sprocket|Min. 48T

Top sprocket|Max. 11T

Top sprocket|Min. 11T

Fluoric coated link bushings 3

Pulley|Teeth 13/13T

Pulley|Sunken type pulley bolt ✔

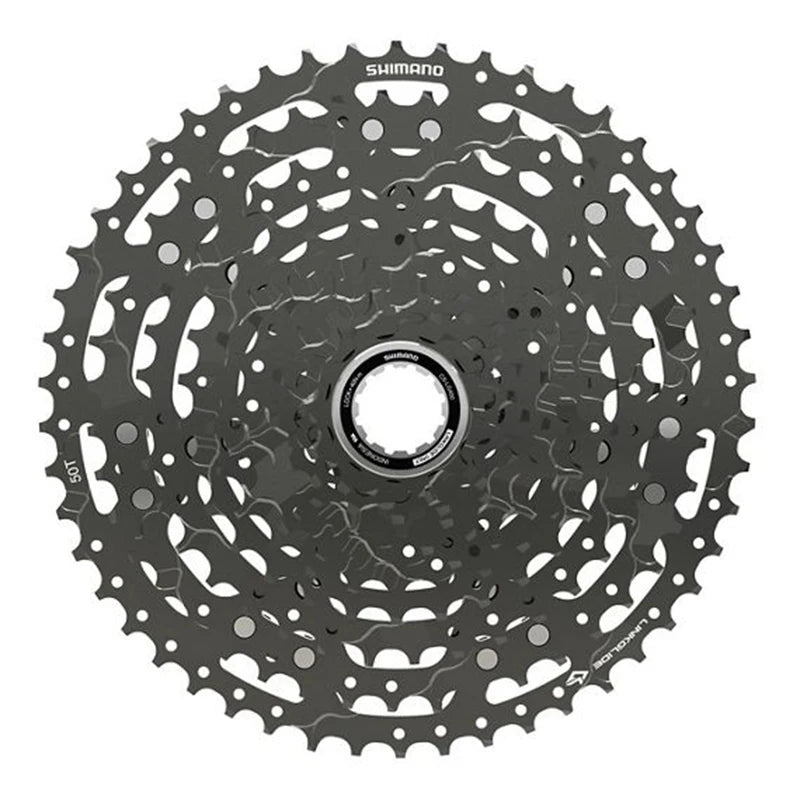

SHIMANO LINKGLIDE Cassette 11-speed

CS-LG400-11 NEW

Rider-tuned gear steps and smooth 2-way shifting

FEATURES

Go further with smooth and long-lasting e-biking performance

Up to three times the durability of HYPERGLIDE in high chain tension conditions

Smooth 2-way shifting (inward and outward) with reduced pedal shock

LINKGLIDE

Premium metallic design

Only compatible with LINKGLIDE shifting system

PRODUCT SPECIFICATIONS

MODEL NO CS-LG400-11

SERIES CUES U6000 Series 11-speed

Remarks * Follow compatibility chart

Type LINKGLIDE

Rear speeds 11

Compatible chain LINKGLIDE, HG 11-speed

Combination name (Group name) 11-45T (NEW) 11-50T

Combination * Titanium gear|1 11-13-15-17-20-23-26-30-34-39-45T

Combination * Titanium gear|2 11-13-15-17-20-23-26-30-36-43-50T

HG spline (Others) X *

Steel gear|QTY (pcs) 11

TECHNOLOGIES

linkglide

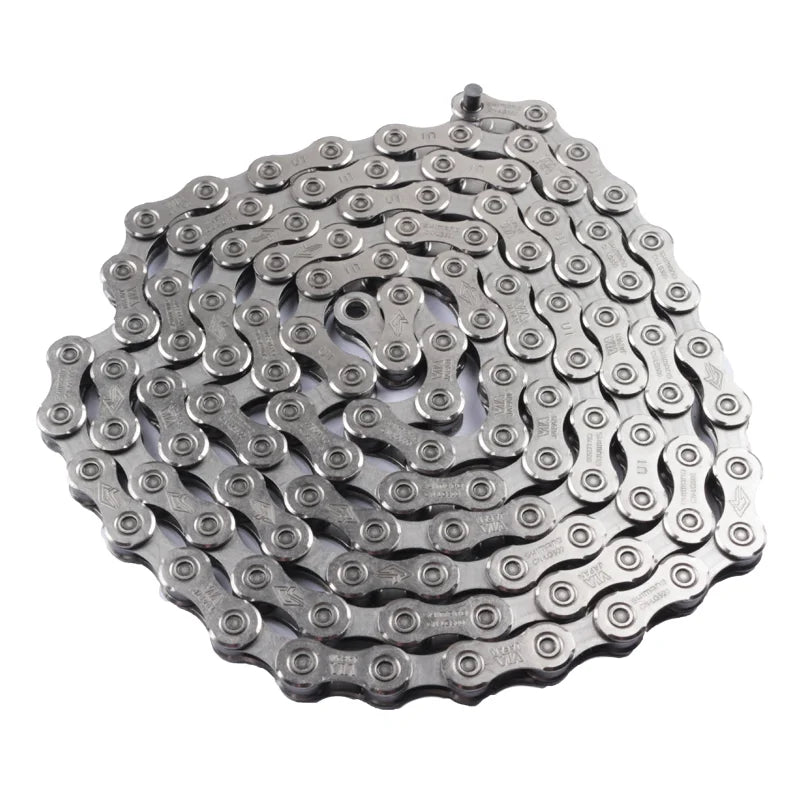

10/11-speed LINKGLIDE Chain

CN-LG500

10/11-speed affordable LINKGLIDE chain even compatible with 11-speed HYPERGLIDE

The LINKGLIDE LG500 chain provides smooth and decisive shifting with both 10/11-speed LINKGLIDE and 11-speed HYPERGLIDE drivetrains.

FEATURES

Smooth and reliable shift performance

LINKGLIDE technology

》Compatible with LINKGLIDE 10/11-speed and 11-speed HYPEGLIDE drivetrain system

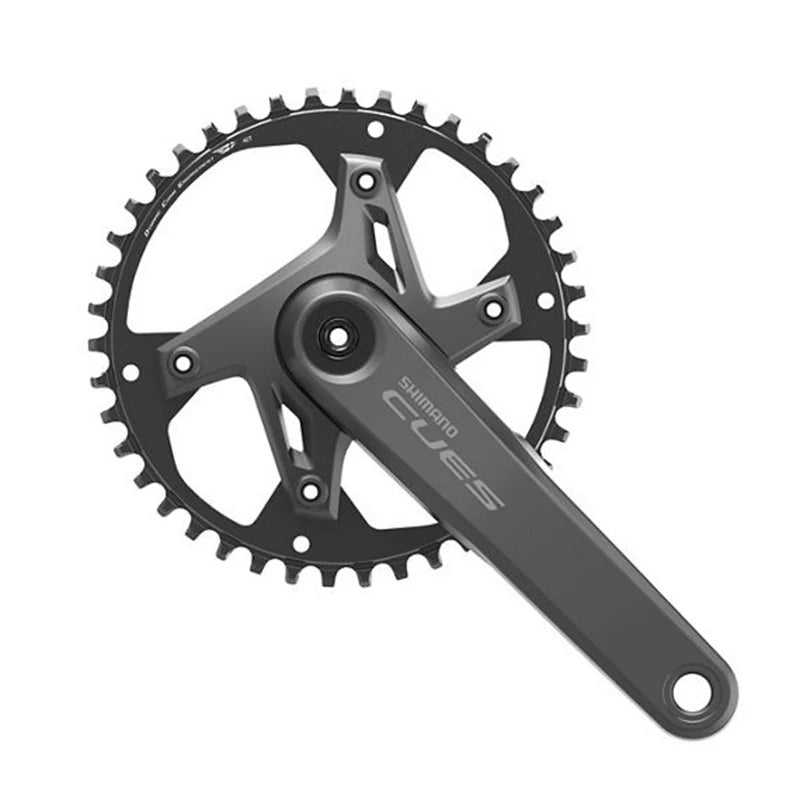

SHIMANO CUES 2-PIECE CRANKSET 1x11/10/9-speed

FC-U6000-1 NEW

Superior chain retention and power transfer for fun riding over the rough stuff

Grow your confidence riding hard over the rough stuff with this crankset's wide-range gearing and seamless pedaling.

FEATURES

2-PIECE CRANKSET increases rigidity of crankset with less weight and transmits pedaling force efficiently

Special gear tip shape improves chain engagement and retention for smooth riding over rough terrain

DYNAMIC CHAIN ENGAGEMENT+

Note:Only compatible with LINKGLIDE shifting system

PRODUCT SPECIFICATIONS

MODEL NO FC-U6000-1

SERIES CUES U6000 Series 10-speed

Color Series color

Rear speeds 11/10/9

Compatible chain LINKGLIDE, HG 11-speed

Chain line (mm) 52 (30T, 32T) 50 (40T, 42T)

O.L.D.|Thru (mm) 148, 142 (30T, 32T) 142 (40T, 42T)

O.L.D.|QR/Nut (mm) 141, 135 (30T, 32T) 135 (40T, 42T)

P.C.D. (mm) 96 (30T, 32T) 110 (40T, 42T)

Spider/Gear arms 4

Chainring combination 30T, 32T, 40T, 42T

Q-factor (mm) 180

Crank arm length (mm)|170 ✔

Crank arm length (mm)|175 ✔

Optional chain guard|With chain guard X (40T, 42T)

Optional chain guard|Without chain/bash guard ✔

2-PIECE CRANKSET ✔

Compatible bottom bracket type|Outboard ✔

Recommended bottom bracket|Threaded (normal) BB-MT501

Recommended bottom bracket|Threaded (chain case) BB-MT501

Recommended bottom bracket|Press-fit BB-MT500-PA

Threaded bottom bracket shell width (mm)|68 ✔

Threaded bottom bracket shell width (mm)|73 ✔

Chain case compatible X (40T, 42T)

Stainless chain guard fixing screw ✔

Crank fixing screw included ✔

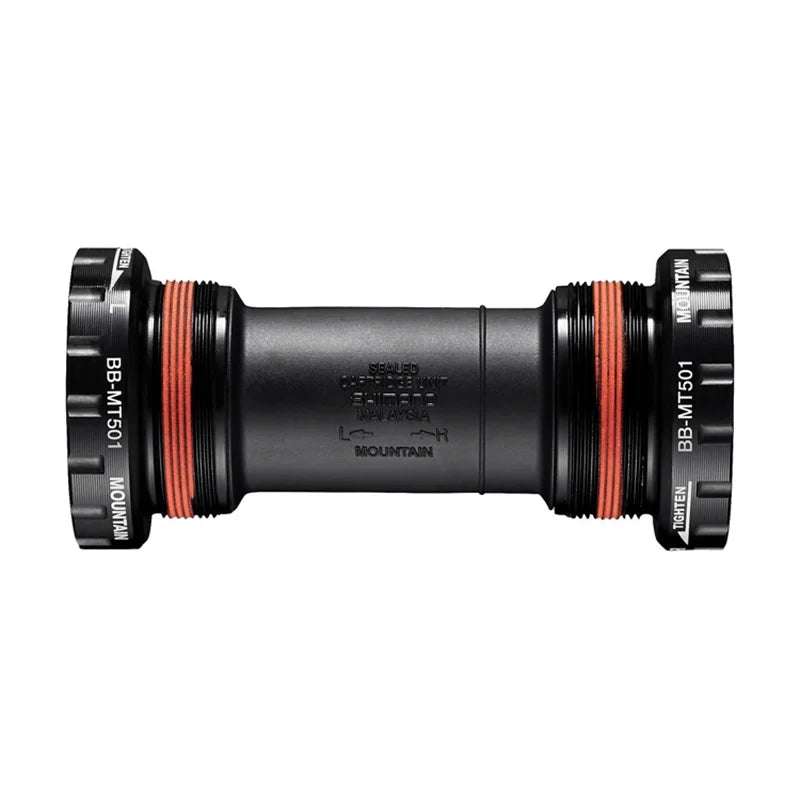

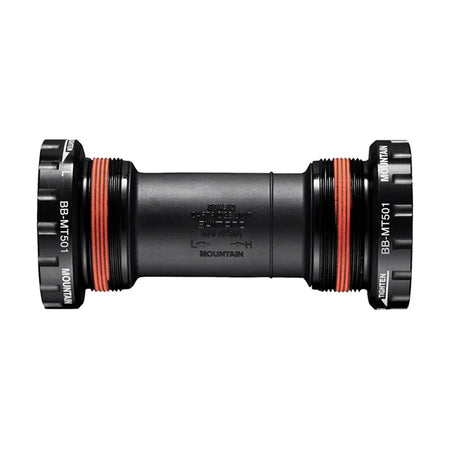

SHIMANO Threaded Bottom Bracket 68/73 mm shell width

BB-MT501

SHIMANO - Bottom Bracket - Threaded - HOLLOWTECH II - 68/73 mm shell width

With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.

FEATURES

Better sealing performance

PRODUCT SPECIFICATIONS

MODEL NO BB-MT501

SERIES SHIMANO

HOLLOWTECH II bottom bracket|Threaded bottom bracket type ✔

Threaded bottom bracket shell width (mm)|68 ✔

Threaded bottom bracket shell width (mm)|73 ✔

TECHNOLOGIES

hollowtech
